Powerex - Tristör
Powerex - Tristör Ürün Bilgisi
Powerex Tristör ürünleri hakkında detaylı bilgiye ihtiyacınız var ise yetkililerimize telefon üzerinden ulaşarak firmanıza özel fiyat teklifi alabilirsiniz. Sonrasında şirketimiz size verilen fiyat bilgisi ile hızla firmanız için gerekli ürünler tedarik edilecektir.
SCR 1KV 628A T7S
Voltage - Off State: 1 kV
Current - On State It (AV) Max: 400 A
Current - On State It (RMS) Max: 628 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
THYRISTOR DISC 4400V 1650A TBK
Voltage - Off State: 4.4 kV
Current - On State It (AV) Max: 1650 A
Current - On State It (RMS) Max: 2590 A
Current - Gate Trigger (Igt) (Max): 300 mA
...
SCR 1KV 125A TO94
Voltage - Off State: 1 kV
Current - On State It (AV) Max: 80 A
Current - On State It (RMS) Max: 125 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 1.4KV 235A TO209AB
Voltage - Off State: 1.4 kV
Current - On State It (AV) Max: 150 A
Current - On State It (RMS) Max: 235 A
Current - Gate Trigger (Igt) (Max): 150 mA
...

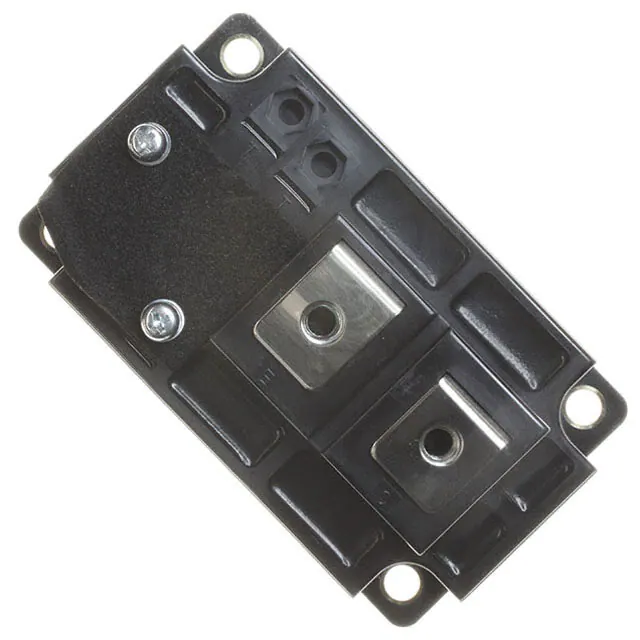

IGBT MOD 1200V 400A 2350W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 400 A
Config.: Single
Current - Collector C.off (Max): 1 mA
...
IGBT MOD 600V 100A 400W
Voltage - Collector Emitter B.(Max): 600 V
Current - Collector (Ic)(Max): 100 A
Config.: Three Phase Inverter
Current - Collector C.off (Max): 1 mA
...
SCR 1.4KV 63A TO94
Voltage - Off State: 1.4 kV
Current - On State It (AV) Max: 40 A
Current - On State It (RMS) Max: 63 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
IGBT MOD 1200V 50A 390W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 50 A
Config.: Three Phase Inverter with Brake
Current - Collector C.off (Max): 1 mA
...
SCR 400V 125A TO94
Voltage - Off State: 400 V
Current - On State It (AV) Max: 80 A
Current - On State It (RMS) Max: 125 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 1.2KV 450A PRESS-PAK
Voltage - Off State: 1.2 kV
Current - On State It (AV) Max: 300 A
Current - On State It (RMS) Max: 450 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 800V 315A T62
Voltage - Off State: 800 V
Current - On State It (AV) Max: 200 A
Current - On State It (RMS) Max: 315 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
IGBT MOD 1200V 100A 600W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 100 A
Config.: Half Bridge
Current - Collector C.off (Max): 1 mA
...
SCR 800V 550A T72
Voltage - Off State: 800 V
Current - On State It (AV) Max: 350 A
Current - On State It (RMS) Max: 550 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 400V 275A TO93
Voltage - Off State: 400 V
Current - On State It (AV) Max: 175 A
Current - On State It (RMS) Max: 275 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 600V 63A TO94
Voltage - Off State: 600 V
Current - On State It (AV) Max: 40 A
Current - On State It (RMS) Max: 63 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 600V 110A TO94
Voltage - Off State: 600 V
Current - On State It (AV) Max: 70 A
Current - On State It (RMS) Max: 110 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 400V 700A T72
Voltage - Off State: 400 V
Current - On State It (AV) Max: 450 A
Current - On State It (RMS) Max: 700 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 400V 470A TO209
Voltage - Off State: 400 V
Current - On State It (AV) Max: 300 A
Current - On State It (RMS) Max: 470 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 1.2KV 550A T72
Voltage - Off State: 1.2 kV
Current - On State It (AV) Max: 350 A
Current - On State It (RMS) Max: 550 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
IGBT MOD 600V 150A 520W
Voltage - Collector Emitter B.(Max): 600 V
Current - Collector (Ic)(Max): 150 A
Config.: Half Bridge
Current - Collector C.off (Max): 1 mA
...
