Powerex - Tristör
Powerex - Tristör Ürün Bilgisi
Powerex Tristör ürünleri hakkında detaylı bilgiye ihtiyacınız var ise yetkililerimize telefon üzerinden ulaşarak firmanıza özel fiyat teklifi alabilirsiniz. Sonrasında şirketimiz size verilen fiyat bilgisi ile hızla firmanız için gerekli ürünler tedarik edilecektir.
SCR 600V 700A T72
Voltage - Off State: 600 V
Current - On State It (AV) Max: 450 A
Current - On State It (RMS) Max: 700 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
THYRISTOR DISC 4300V 1650A TBK
Voltage - Off State: 4.3 kV
Current - On State It (AV) Max: 1650 A
Current - On State It (RMS) Max: 2590 A
Current - Gate Trigger (Igt) (Max): 300 mA
...
SCR 400V 750A T72
Voltage - Off State: 400 V
Current - On State It (AV) Max: 475 A
Current - On State It (RMS) Max: 750 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 1KV 700A T72
Voltage - Off State: 1 kV
Current - On State It (AV) Max: 450 A
Current - On State It (RMS) Max: 700 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR PHASE CTRL 1400V 1800A
Voltage - Off State: 1.4 kV
Current - On State It (AV) Max: 1800 A
Current - On State It (RMS) Max: 2820 A
Current - Gate Trigger (Igt) (Max): 200 mA
...
SCR 1.4KV 63A TO94
Voltage - Off State: 1.4 kV
Current - On State It (AV) Max: 40 A
Current - On State It (RMS) Max: 63 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR 400V 475A T70
Voltage - Off State: 400 V
Current - On State It (AV) Max: 300 A
Current - On State It (RMS) Max: 475 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
IGBT MOD 1200V 100A 565W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 100 A
Config.: Three Phase Inverter
Current - Collector C.off (Max): 1 mA
...

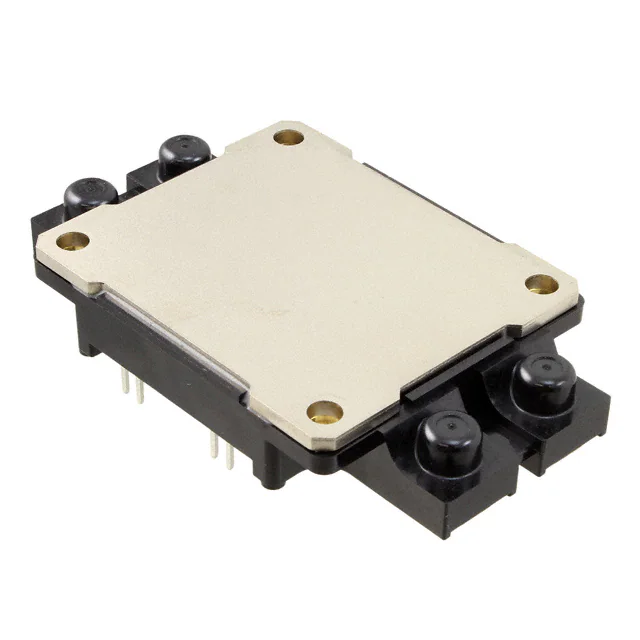

IGBT MOD 1200V 150A 1150W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 150 A
Config.: Single
Current - Collector C.off (Max): 1 mA
...
SCR 1.3KV 100A TO94
Voltage - Off State: 1.3 kV
Current - On State It (AV) Max: -
Current - On State It (RMS) Max: 100 A
Current - Gate Trigger (Igt) (Max): 150 mA
...

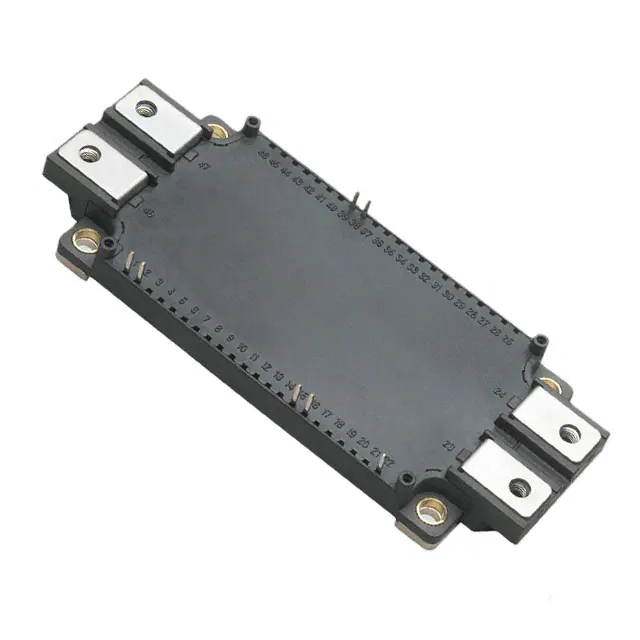

IGBT MOD 600V 300A 960W
Voltage - Collector Emitter B.(Max): 600 V
Current - Collector (Ic)(Max): 300 A
Config.: Half Bridge
Current - Collector C.off (Max): 1 mA
...
SCR 1KV 63A TO94
Voltage - Off State: 1 kV
Current - On State It (AV) Max: 40 A
Current - On State It (RMS) Max: 63 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
THYRISTOR DISC 3500V 1800A TBK
Voltage - Off State: 3.5 kV
Current - On State It (AV) Max: 1800 A
Current - On State It (RMS) Max: 2826 A
Current - Gate Trigger (Igt) (Max): 250 mA
...
IGBT MOD 250V 400A 890W
Voltage - Collector Emitter B.(Max): 250 V
Current - Collector (Ic)(Max): 400 A
Config.: Half Bridge
Current - Collector C.off (Max): 1 mA
...
SCR 400V 475A T70
Voltage - Off State: 400 V
Current - On State It (AV) Max: 300 A
Current - On State It (RMS) Max: 475 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR PHASE CTRL MOD 1600V 300A
Voltage - Off State: 1.6 kV
Current - On State It (AV) Max: 300 A
Current - On State It (RMS) Max: 470 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
IGBT MOD 1200V 1000A 7500W
Voltage - Collector Emitter B.(Max): 1200 V
Current - Collector (Ic)(Max): 1000 A
Config.: Half Bridge
Current - Collector C.off (Max): 1 mA
...
SCR MOD ISO SGL 2000V 430A
Voltage - Off State: 2 kV
Current - On State It (AV) Max: 510 A
Current - On State It (RMS) Max: 800 A
Current - Gate Trigger (Igt) (Max): 200 mA
...
SCR 400V 400A T62
Voltage - Off State: 400 V
Current - On State It (AV) Max: 250 A
Current - On State It (RMS) Max: 400 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
SCR PHASE CTRL MOD 200V 900A
Voltage - Off State: 200 V
Current - On State It (AV) Max: 900 A
Current - On State It (RMS) Max: 1410 A
Current - Gate Trigger (Igt) (Max): 150 mA
...
